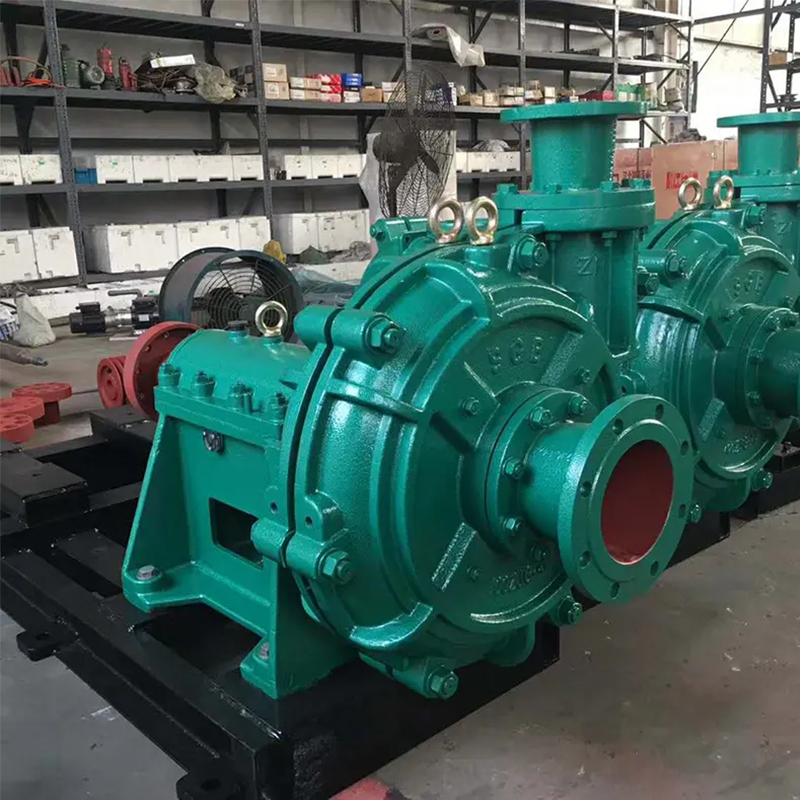

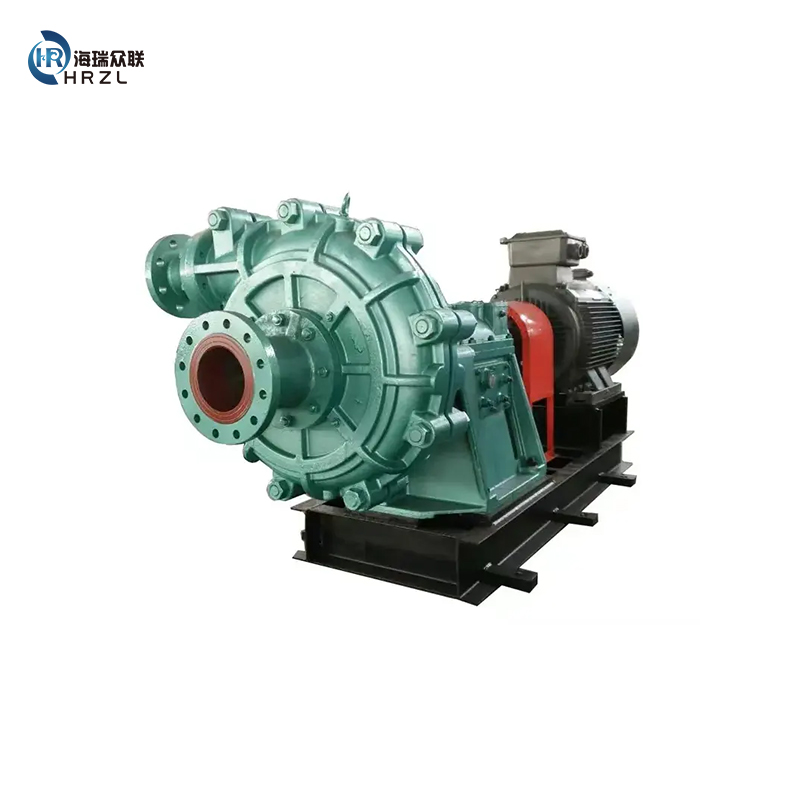

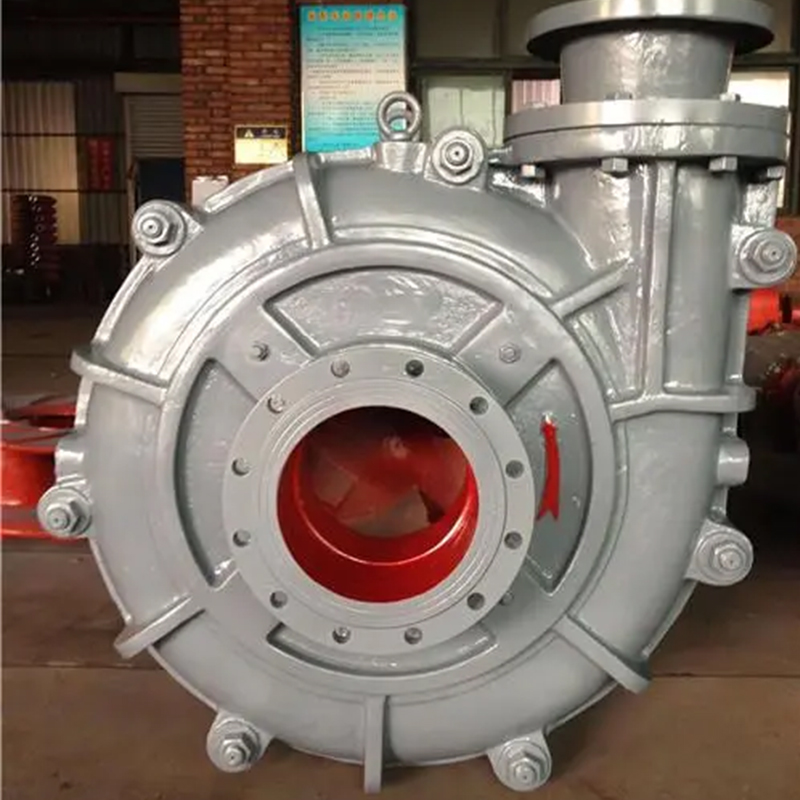

Horizontal slurry pump

Model No. HRZL-ZJW
Flow range: 10-10000m³/h(Customizable)
Rate speed: 300-1450r/min
Caliber DN40-500mm(Customizable)
Specification --
Lift range 10-160m(Customizable)
Power range 7.5-800KW(Customizable)

Free Quote info@diesel-engine-pumps.com

Download PDF

Description

HRZL-ZJW horizontal slurry pump adopts excellent hydraulic model design with high efficiency and good performance. Double pump casing structure, easy installation and maintenance. It is suitable for conveying granular media in metallurgy, mining, coal, power building materials and other industrial sectors. It has corrosion resistance and high concentration slurry. According to the use of industrial and mining, it can be driven by motor.

Introduction

Anti-corrosion and wear-resistant

High efficiency

Compact structure Smoothoperation

Wide range of applications

HRZL-ZJW horizontal slurry pump is driven by motor connection. The temperature of the conveyed medium is generally <80℃, and the concentration of solid-liquid mixture can reach 110℃ in special cases. The concentration of mortar is ≤45%, and the concentration of ore slurry is <60%. It is suitable for conveying strong abrasive and high-concentration slurry in metallurgy, mining, coal, power and building materials and other industrial sectors.

Model Meaning
