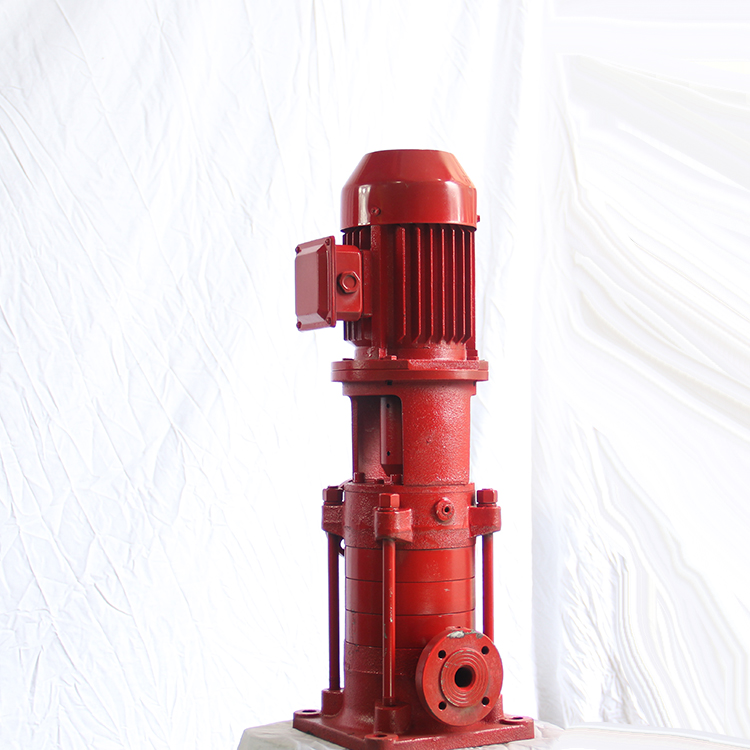

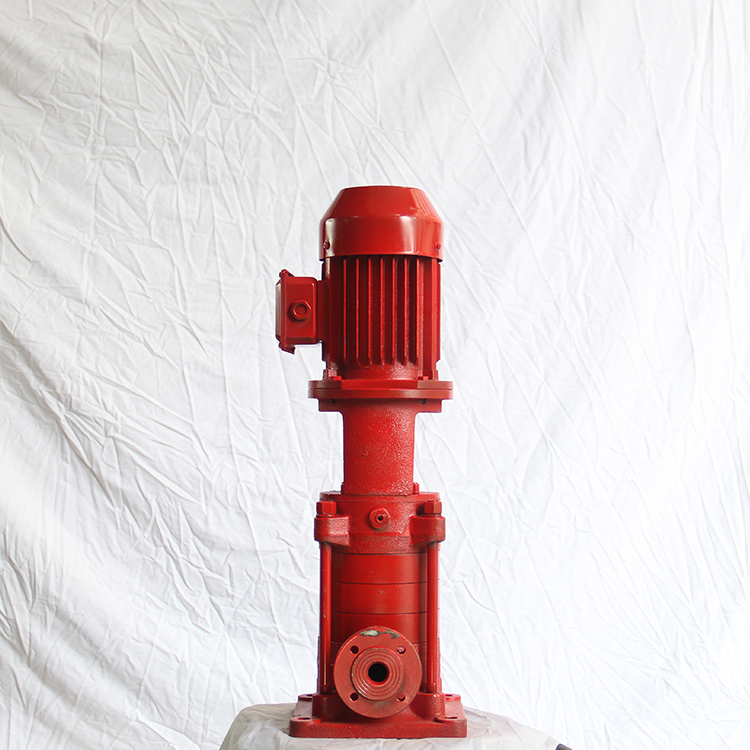

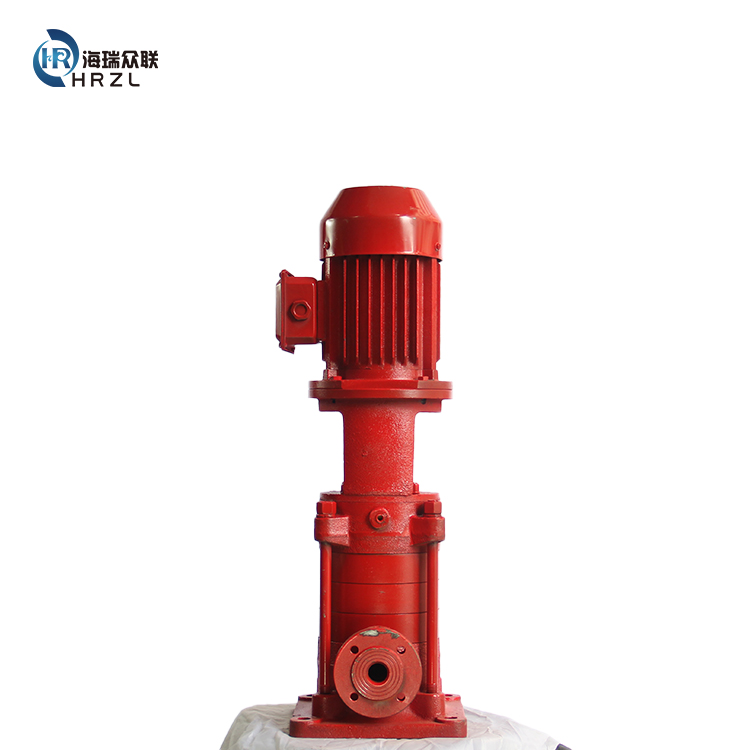

Vertical multi-stage fire pump set

Model No. XBD-G-DL
Flow range: 5-40L/s
Rate speed: 2900min
Caliber XBDG-DL
Specification Vertical
Lift range 37M-200M
Power range 5.5KW-160KW

Free Quote info@diesel-engine-pumps.com

Download PDF

Description

Vertical single-suction multi-stage segmented fire pump is used for transferring clear water without solid particles and liquids with physical and chemical properties similar to water. It is mainly used for water supply for high-rise firefighting, and it can also be used for water supply and drainage in factories and mines. The flow range of the transferred liquid is 0.83~100L/S, the pressure range is 0.2-2.3Mpa, and the diameter range is φ25~φ200mm.

Introduction

Mechanical and electricalfull protection

High configuration Out ofmotor burnout

Good heat dissipation

Long service life

The performance parameters of XBD-G-DL series pumps can be used not only for independent fire water supply system but also for fire protection, domestic (production) common water supply system and also for domestic (production) water supply conditions. It can be used in construction, municipal industrial and mining water supply and drainage, and boiler water supply, etc..

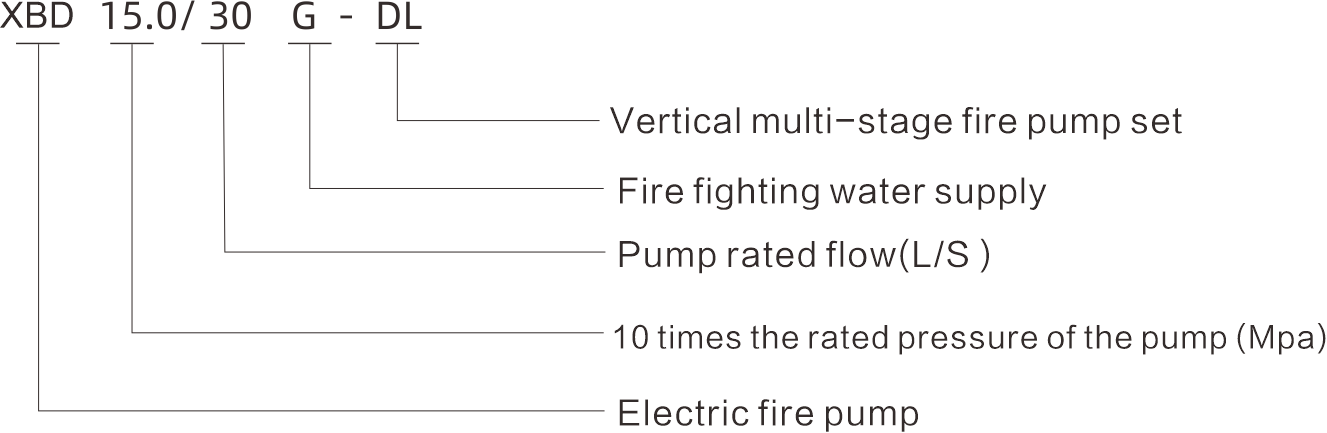

Model Meaning

Advantage

1 Year Warranty We can provide very professional commercial support, technical support and document support
22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
