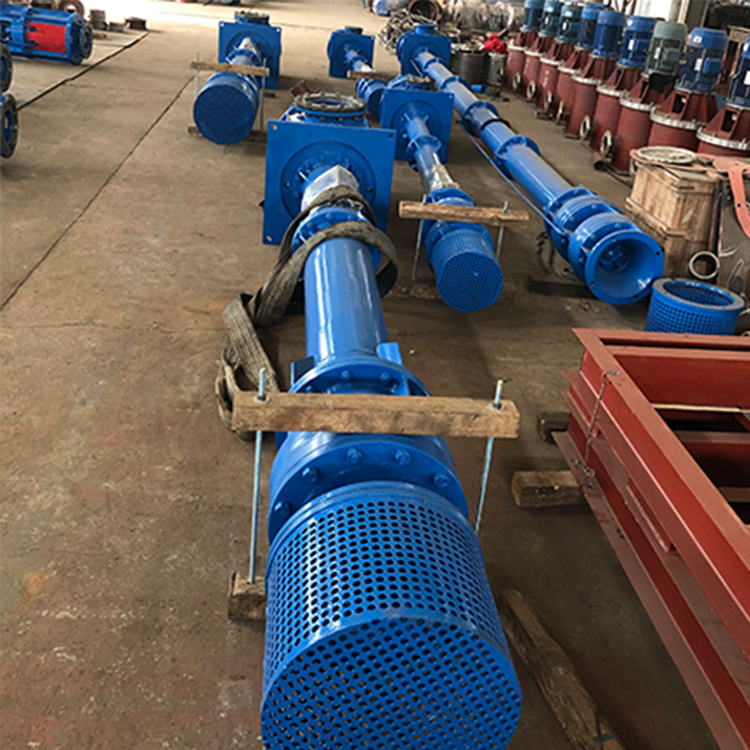

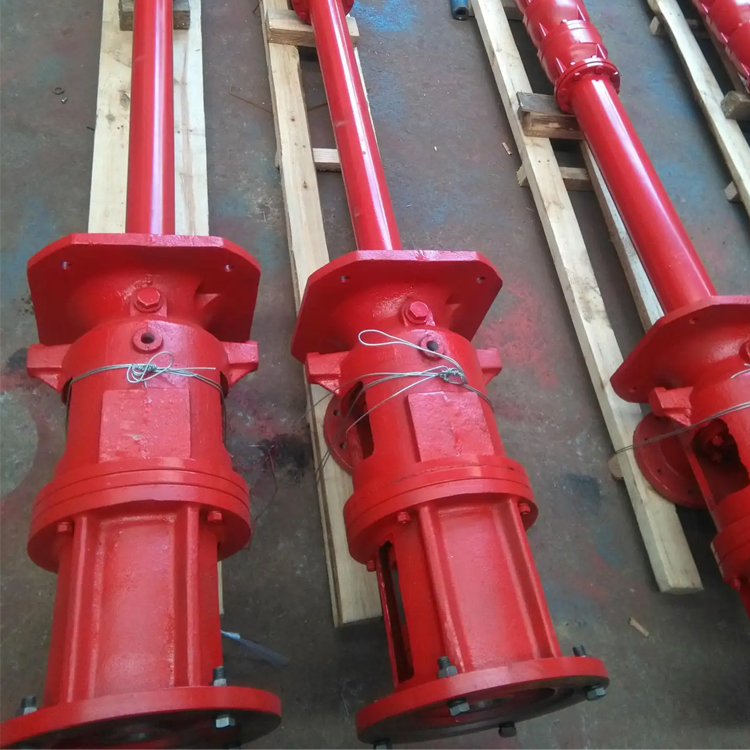

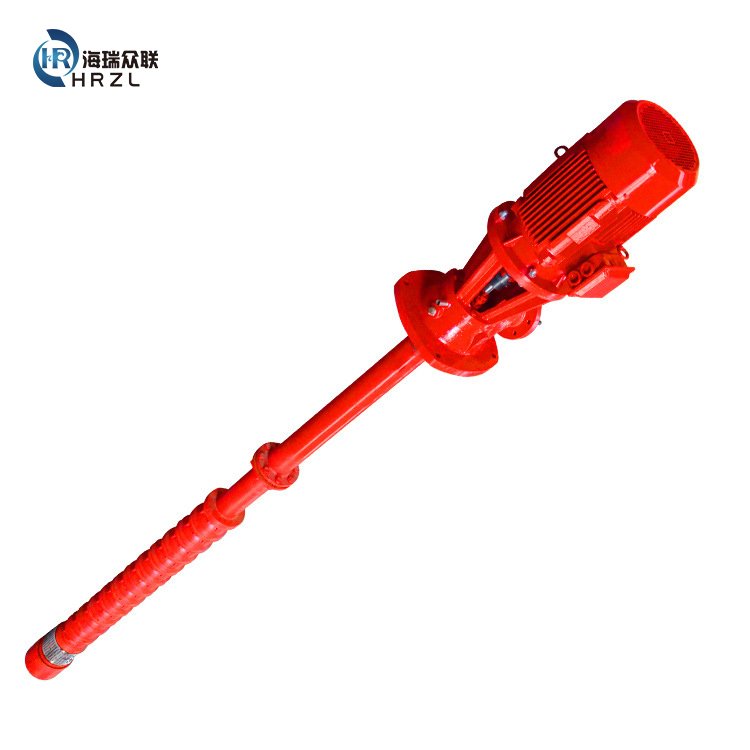

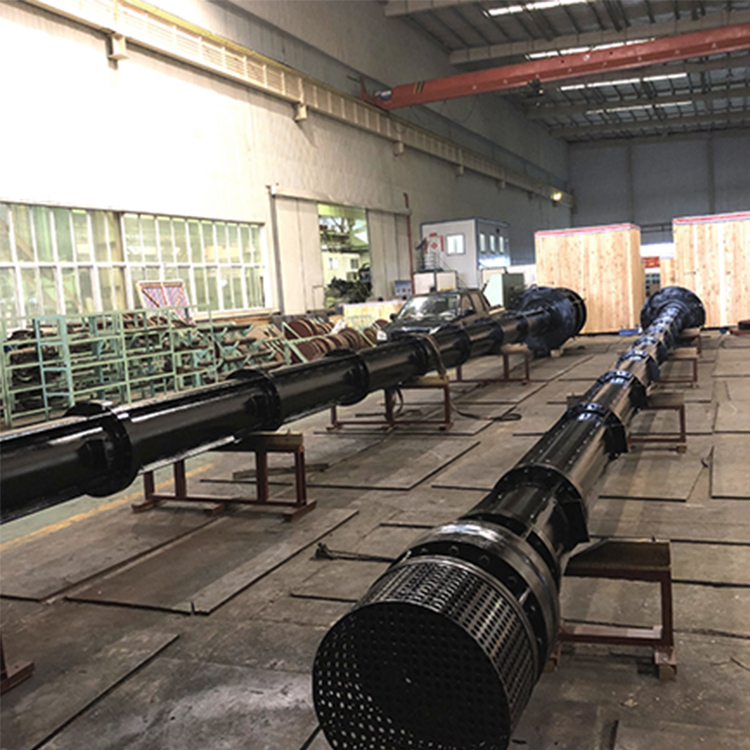

XBC/WGJ-HRZL Axial flow deep well fire pump (long shaft deep well fire pump, vertical axial flow deep well fire pump, diesel engine deep well long shaft fire pump) is an axial flow deep well fire pump optimized on the basis of the original LC or QJ vertical long shaft pump. It is especially suitable for fire-fighting water supply for workshops of industrial and mining factories. The performance and technical conditions of the pump all meet the requirements of the new GB6245-2006 “Fire Pump” standard issued by the Chinese fire department.
The motor drives the impeller working under the liquid to rotate through the shaft. After the fluid obtains energy through the impeller, it changes direction through the space guide vane, rises vertically along the flow path between the inner and outer pipes, and flows out horizontally through the outlet elbow. The pump is composed of two parts, the central rotating body and the pump body. The rotating part is composed of impeller, shaft, sleeve type rigid coupling (coupling and coupling sleeve), bearing, coupling, etc. The part of the pump body is composed of filter screen, space guide vane, outer tube, inner pipe, rubber bearing frame, base, water outlet elbow, bearing body, motor base, etc.
