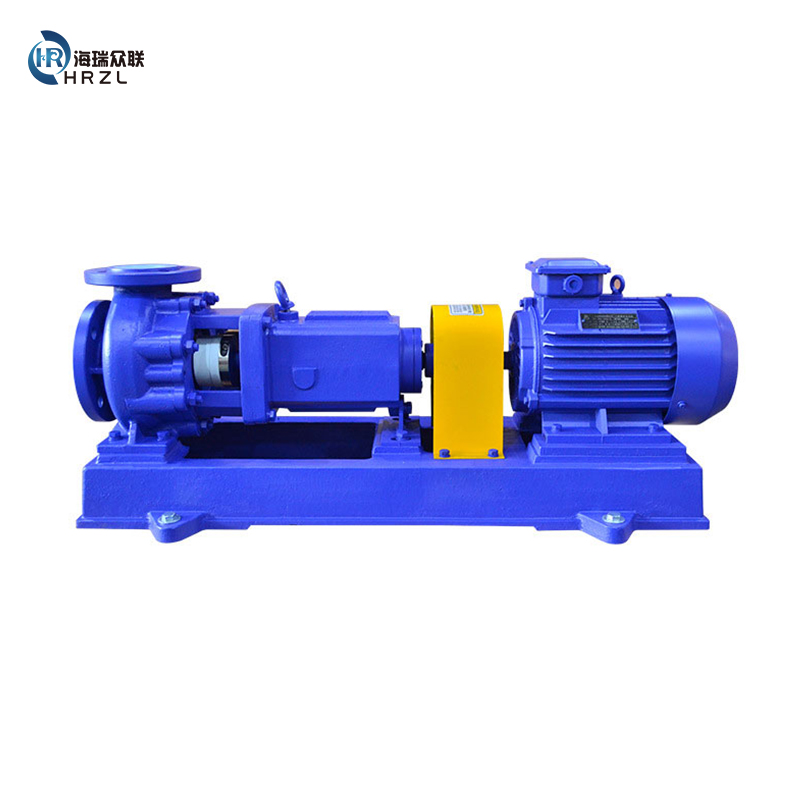

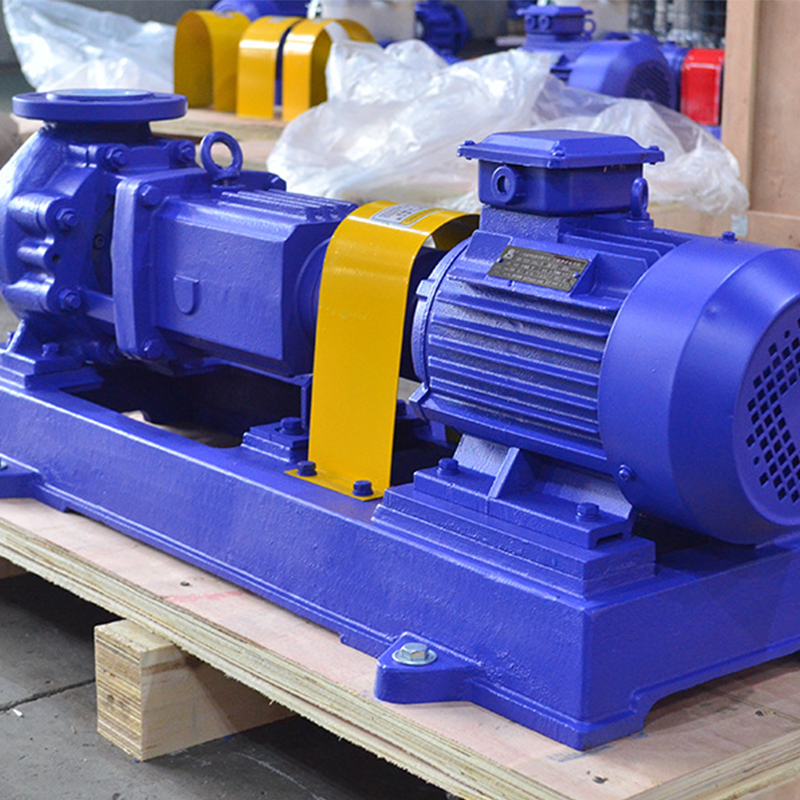

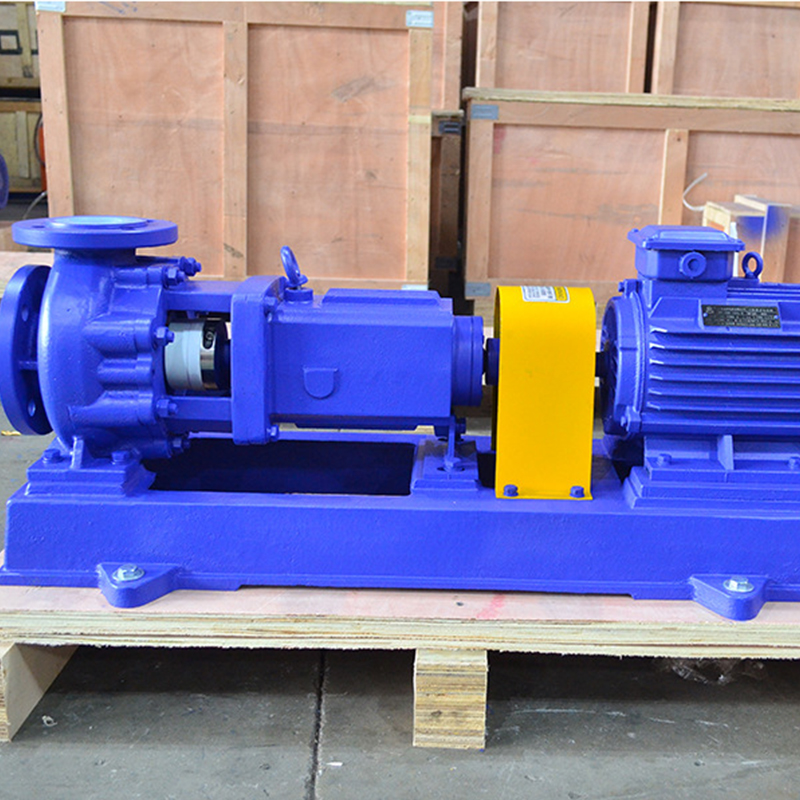

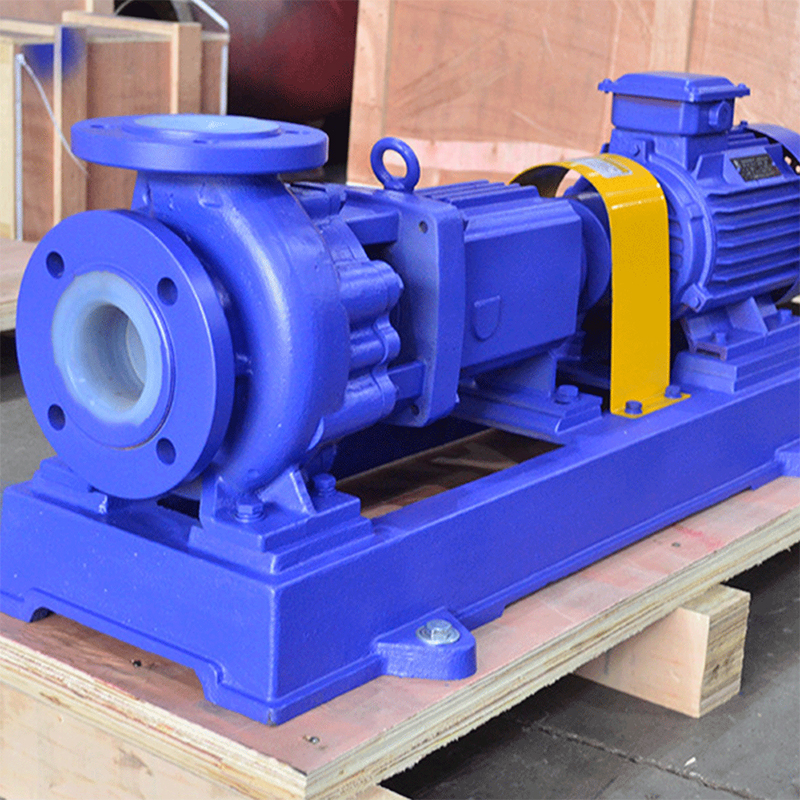

IH Chemical pump

  • Model No. HRZL-IH
  • Flow range: 0.3-400m³/h(Customizable)
  • Rate speed: 2900/1450r/min
  • Caliber DN25-200mm(Customizable)
  • Specification --
  • Lift range 5-125m(Customizable)
  • Power range 0.55-90KW(Customizable)
  • Advantage
Free Quote

Description

This series of pumps is a single-stage, single-suction, cantilever centrifugal pump, which is an energy-saving product determined by the Ministry of Machinery to replace the F-type centrifugal pump. It is suitable for transferring corrosive liquids with a viscosity similar to water in chemical processes. The pump can be widely used in chemical industry, petroleum, metallurgy, electric power, paper making, food, pharmaceutical, synthetic fiber and other industries. The temperature of the medium is generally -20~15℃. If appropriate cooling measures are adopted, the medium with a higher temperature can be transferred.

Introduction

Pollution preservative

High temperature resistance

low noise

Smooth running


The transferring medium temperature of HRZL-IH chemical pump is -20℃~105℃, if necessary, it adopts double-end seal cooling device, and the transferring medium temperature is below 300℃. IH stainless steel chemical pumps are suitable for chemical, petroleum, metallurgy, electric power, papermaking, food, pharmaceutical, environmental protection, wastewater treatment and synthetic fiber industries to transfer various corrosive or water-like media that do not allow.

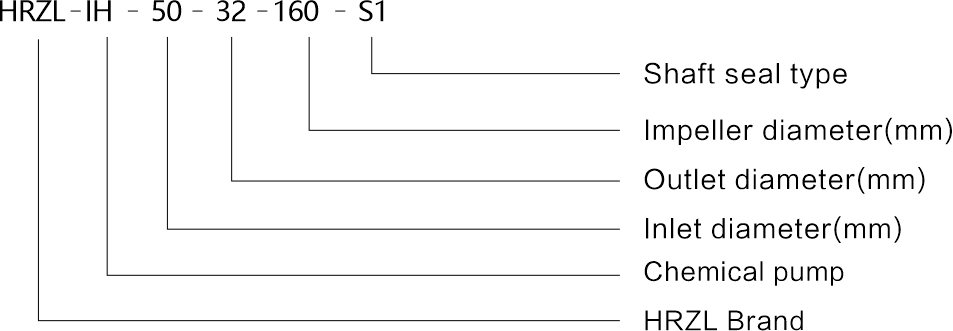

Model Meaning

Advantage

  • 1 Year Warranty We can provide very professional commercial support, technical support and document support
  • 22 Years Experience We have more than 22 years of experience in Electirc Heating Equipment,Excellent temperature field uniformity is our strength
  • R&D Design Team Professional design and development team, to provide you with professional and reasonable heat treatment solutions
  • Quality Control Rigorous quality control process, each process process traceable, to provide customers with high quality products
